Fenix HL60R Rechargeable LED Headlamp


Fenix HL60R Rechargeable LED Headlamp

Featuring a Micro USB port for go-anywhere charging, the Fenix HL60R headlamp delivers a maximum output of 950 lumens. The HL60R features a maximum beam distance of up to 380.6 feet/116 meters and a maximum runtime of up to 100 hours just from a single 18650 Li-ion battery. The HL60R is equipped with a neutral white LED for better color rendering, a side switch to activate the five output modes and a red light alert mode. The HL60R is an all-season headlamp and is designed with aluminum housing. The HL60R is rated IPX-8 for waterproof and submersible for 6.5 feet for 30 minutes. The Fenix HL60R is an obvious first choice when you climb high altitudes, go out for cave explorations, or just in backpack country.

NOTE: The Desert Yellow color option is more of a yellow hue rather than the military sand/tan color.

CLICK HERE for headlamp helmet attachment


  • Utilizes Cree XM-L2 U2 Neutral white LED with a lifespan of 50,000 hours
  • Five output modes plus a red light
    • Turbo: 950 Lumens (48 min - 380.6 feet/116 meters)
    • High: 400 Lumens (3 hr.)
    • Mid: 150 Lumens (10 hr.)
    • Low: 50 Lumens (29 hr.)
    • Eco: 5 Lumens (100 hr.)
    • Red Light: 1 Lumen (100 hr.)
  • Digitally-regulated output
  • Dual light source
  • One-switch operation for convenient operation
  • 160-degree tilt mechanism
  • Supplementary red light mode to preserve night vision
  • Reverse polarity protection, to protect from improper battery installation
  • Micro USB rechargeable for 18650 batteries
  • Power Level Indicator
  • Made of durable, high-grade aluminum
  • Rugged aluminum housing for better heat dissipation and impact resistance
  • Premium Type III hard-anodized anti-abrasive finish
  • Toughened ultra-clear glass lens with anti-reflective coating
  • Waterproof to IPX-8 waterproof rating (underwater for 6 1/2 feet for 30 min.) even if the anti-dust cover is unplugged
  • CLICK HERE for the User Manual

Batteries Used (18650 Battery Included)

  • Includes one Fenix ARB-L18-2600 18650 battery
  • Your options for a backup/replacement rechargeable 18650 battery (Fenix ARB-L18-2600, ARB-L18-2600UARB-L18-2900ARB-L18-3500, or ARB-L18-3500U)  Each has a different mAh.  The higher the mAh, the longer the runtime between charges.
  • Two non-rechargeable CR123A batteries.  (Fenix does NOT recommend rechargeable CR123 batteries since they will not perform according to the specification chart included for the HL60R)

Size of Headlamp

  • Length: 3.4 inches (87mm)
  • Width: 1.8 inches (46mm)
  • Height: 2 inches (51mm)
  • Weight: 4.3 oz. (121 grams) excluding battery

What Comes With Your Headlamp

  • 1 - HL60R Headlamp
  • 1 - Fenix ARB-L18-2600 18650 Rechargeable Li-ion Battery
  • 1 - USB Cable
  • 1 - Spare O-Ring
  • 1 - Warranty Card
  • 1 - User Manual

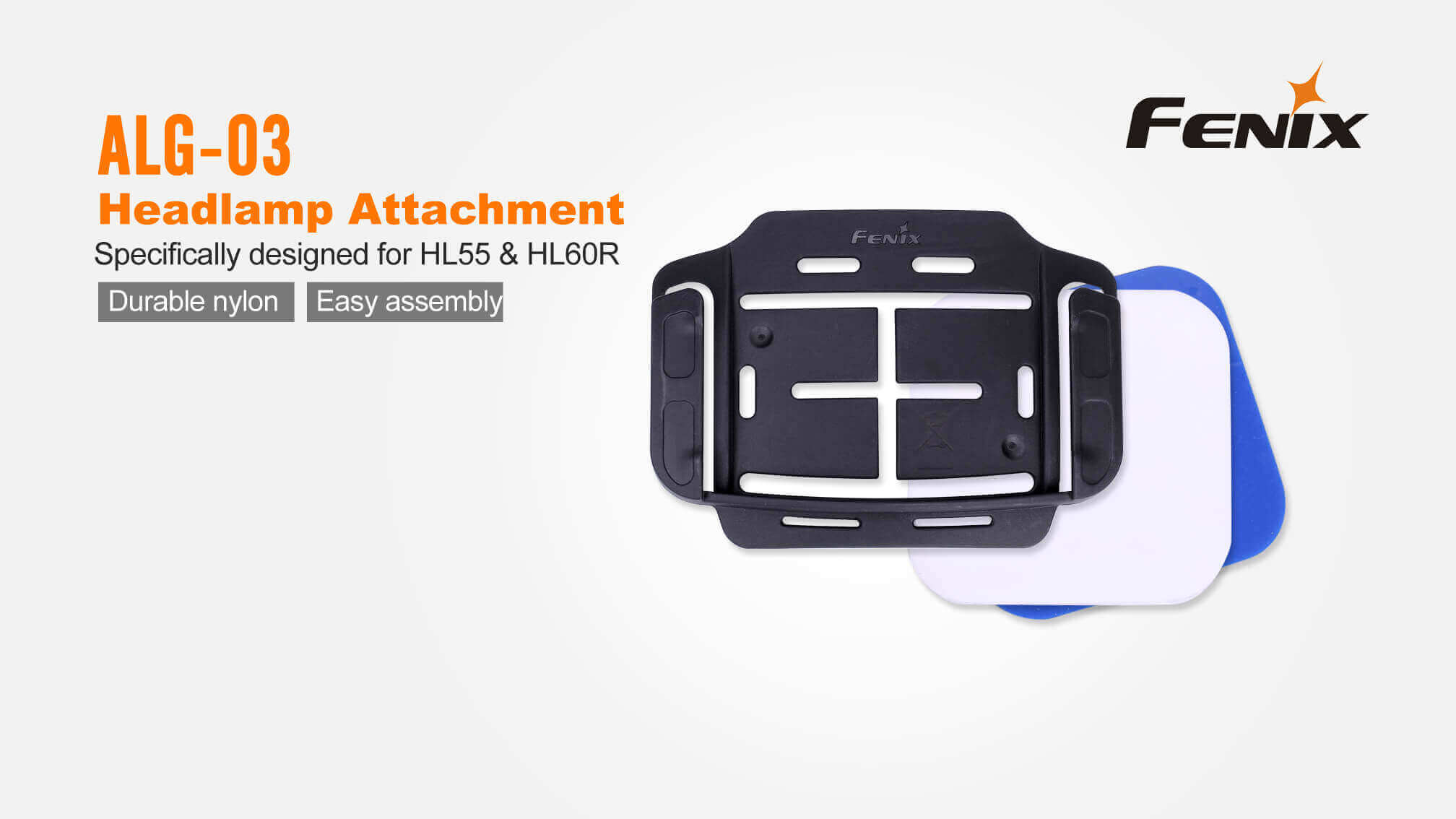

Optional: ALG-03 Headlamp Helmet Mount
